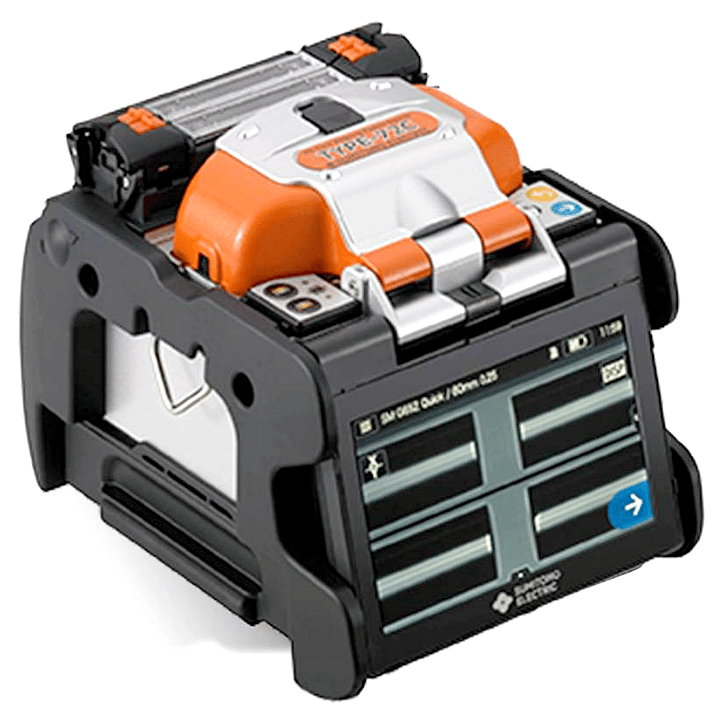

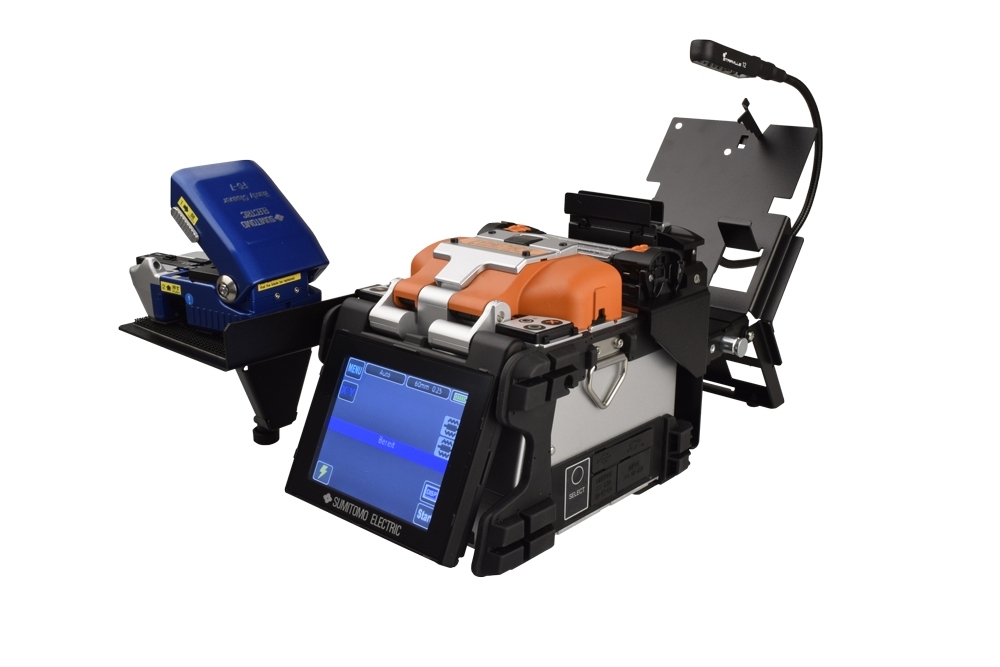

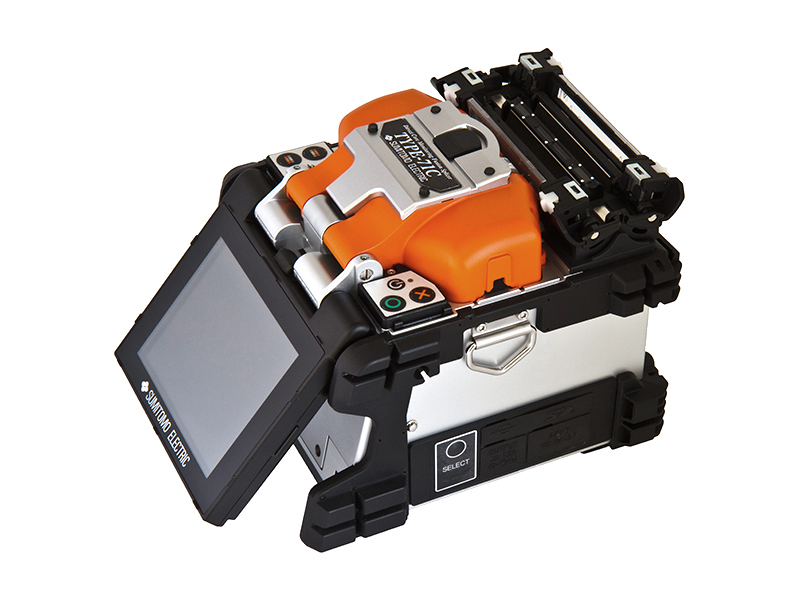

دستگاه فیوژن فیبر نوری سومیتومو Type-71C Plus
125,000,000تومان
Sumitomo Type-71C Plus Fusion Splicer
توضیحات
نقد و بررسی دستگاه فیوژن فیبر نوری سومیتومو Type-71C Plus
Fusion Splicer Sumitomo
- Material : Silica glass
- Fibre count / Profile types : Single / SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655), BIF(G.657), EDF
- Fibre diameter : Cladding diameter: 80µm~150µm, Coating diameter: 100µm~1,000µm
- Cleave length : 5~16mm with coating clamp
- Splice loss (typical) : SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB
- Splicing time (typical) : 6 seconds (SM G.652 Quick Mode),7 seconds (SM G.652 standard Mode),8 seconds (Auto mode)
- Heating time (typical) : 14 seconds (Slim 60mm 0.25 Quick Mode)
- Splice & Heat cycles per battery full charge *2 : Approx. 230 (BU-11)
- Fibre view & magnification : Two CMOS cameras observation 320X (zoom:700X) for X or Y single axis view, 88X for both X & Y dual axis view
- Proof test : 1,96~2,09N
- Applicable protection sleeve : 60mm, 40mm & Sumitomo Nano sleeves
- Size : 120(W) × ۱۵۴(D) × ۱۳۰(H) mm (without anti-shock rubber)
- Weight : 1.8kg (without battery) – 2.1kg (with battery)
- Monitor : 4.1″ touch screen color LCD display
- DC output : DC 12V (for JR-6)
- USB port : USB 2.0 (mini-B type)
- Storage media : SD / SDHC memory card
- AC input : AC 100~240V, 50/60Hz (ADC-1430S)
- DC input : DC 10~15V
- Battery pack : Li-ion 11.1V, 4,600mAh (BU-11)
