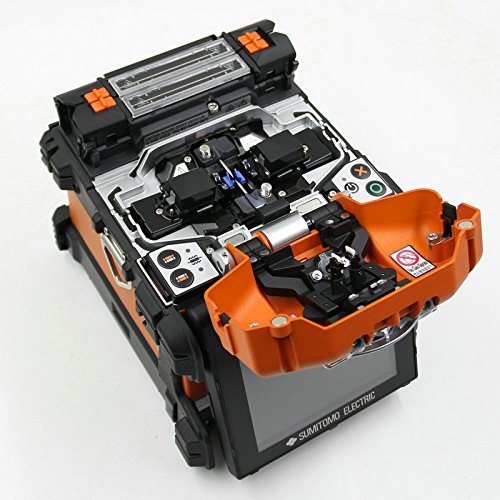

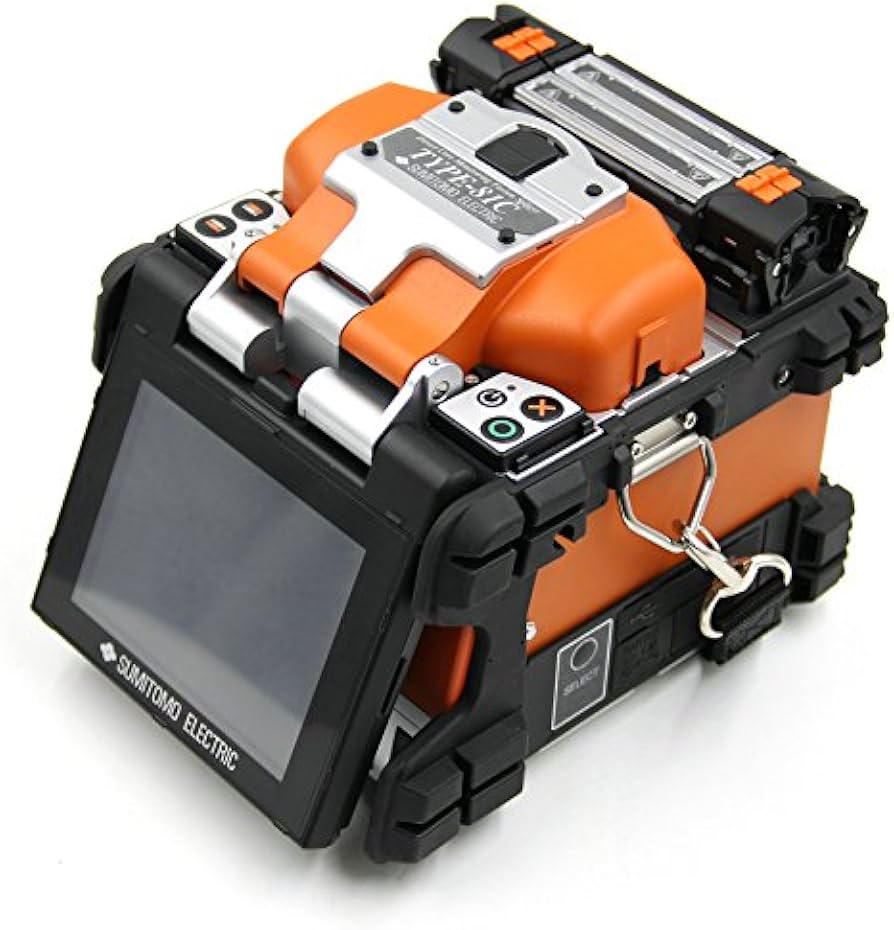

دستگاه فیوژن فیبر نوری سومیتومو Type-81C

توضیحات

نقد و بررسی دستگاه فیوژن فیبر نوری سومیتومو Type-81C

– Product name : TYPE-81C
– Material; Silica glass
– Fiber diameter : Cladding diameter: 80μm~150μm, Coating diameter: 100μm~1,000μm
– Fiber count / Profile types: Single / SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655), BIF(G.657), EDF
– Cleave length:  ~ 16mm with coating clamp
– Splice loss (typical): SMF : 0.01dB, MMF : 0.01dB, DSF : 0.03dB, NZDSF : 0.03dB
– Return loss (typical) : 60dB or greater
– Splice time (typical): 6sec(SM G652 Quick Mode), 7sec(SM G652 Std. Mode), 8sec(Auto Mode)
– Heating time (typical): 14sec (FPS-61-2.6 sleeve, Slim 60mm Quick Mode )
– Proof test: 1.96  ~ 2.09N
– Applicable protection sleeve: 60mm, 40mm & Sumitomo Nano sleeves
– Size: 120(W) x 154(D) x 130(H) mm (without anti-shock rubber)
– Weight: 1.8kg (without Battery) / 2.0kg (with Battery BU-11S ) / 2.1kg (with Battery BU-11 )
– Monitor: 4.1″ touch screen color LCD display
– DC output: DC 12V (for JR-6)
– USB port: USB 2.0 (mini-B type)
– Storage media: SD / SDHC memory card MAX32GB
– AC input: AC input
– DC input : DC 1 0 ~ 15V
– Battery pack: Li-ion 11.1V, 2,300mAh (BU-11S) / Li-ion 11.1V, 4,600mAh (BU-11)
– Altitude : 0 ~ 6,000m, Temperature : -10 ~ +50°C, Humidity : 0 ~ 95% (non-condensing),Wind velocity : up to 15m/sec
– Storage condition: Temperature : -40 ~ +80°C, Humidity : 0 ~ 95% (non-condensing), Battery : -20 ~ +30°C (long term)
– Electrode life : 3,000 arc discharges
– Data management: Can be stored, edited and analyzed by dedicated PC software
